Length ToolΒΆ
When the Length Tool is selected, straight lines can be measured on the screen. The measurement and unit will be displayed on the screen.
Step |
Function |
|---|---|
1 |
Open the MCAM software. |
2 |

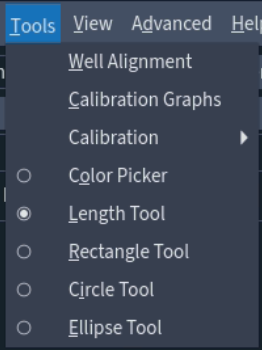

Go to Tools > Length Tool. |
3 |

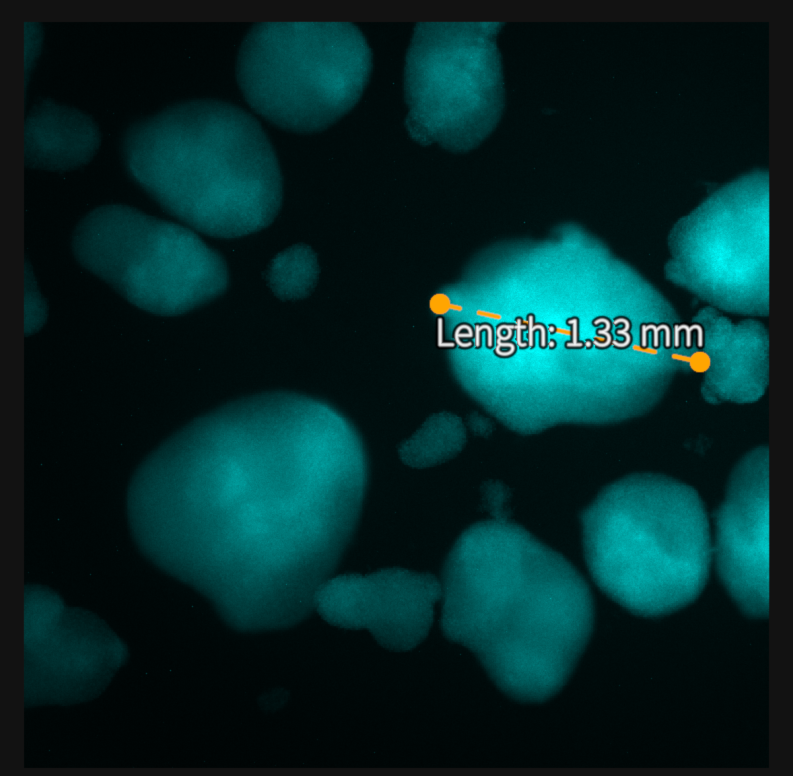

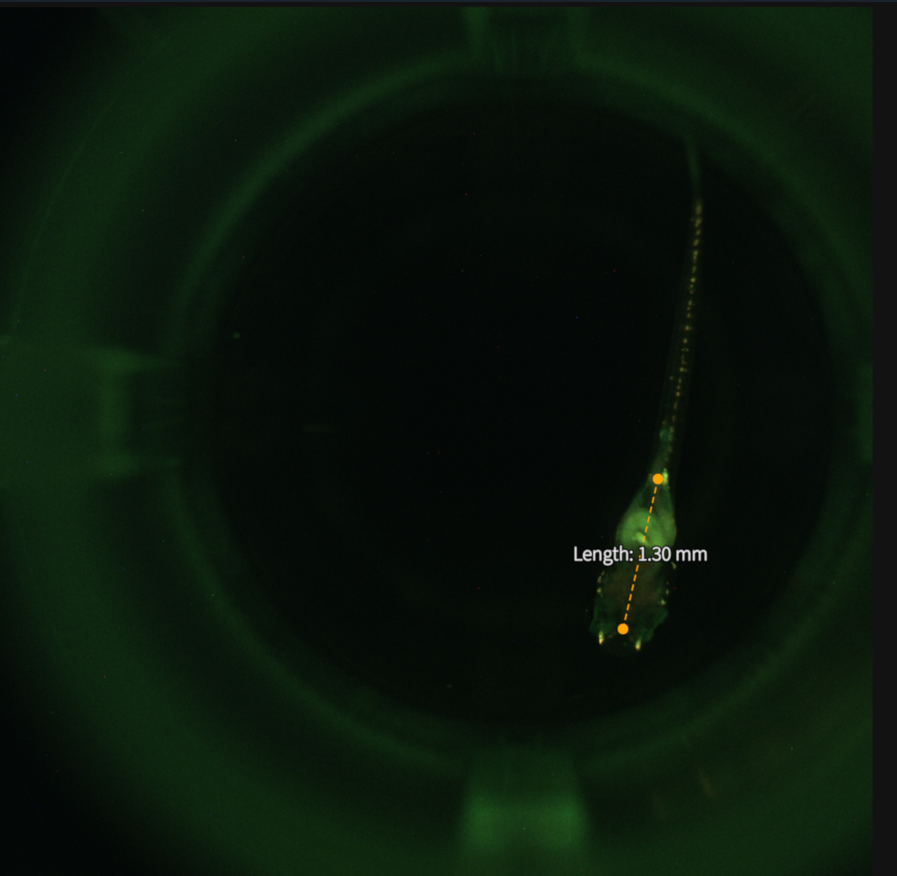

Click once with the left mouse button to define the beginning of the line, move the cursor to extend the line and finally click again with the left mouse button to define the end of the line. |
4 |
To take another measurement simply repeat step 3. To remove the Length Tool repeat step 2. |
