Circle Tool¶

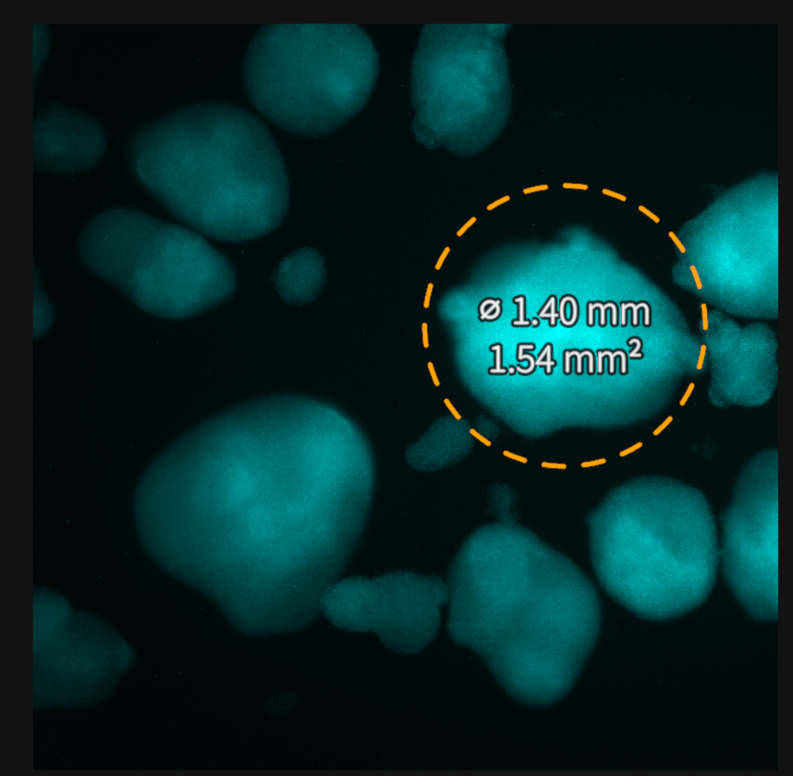

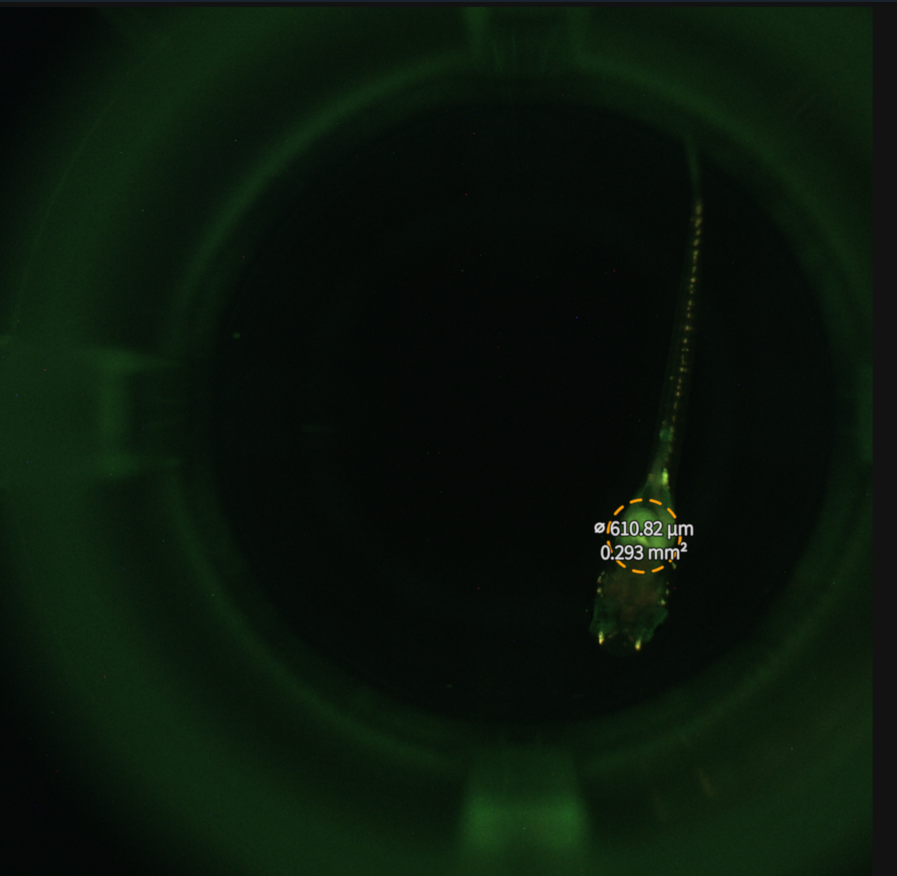

When the Circle Tool is selected, circles can be drawn across a desired area of the screen. Diameter, area and their corresponding units will be displayed on the screen.
Step |
Function |
|---|---|
1 |
Open the MCAM software. |
2 |

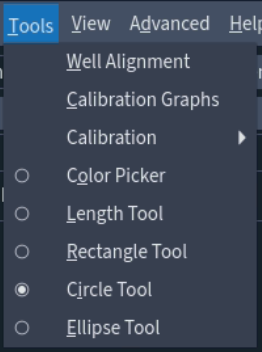

Go to Tools > Circle Tool. |
3 |
Click once with the left mouse button to define the center of the circle, move the cursor to extend the circle’s radius and finally click once with the left mouse button a second time to define the final shape of the circle. |
4 |
To take another measurement simply repeat step 3. To remove the Circle Tool repeat step 2. |
